Total 37 Storage Tanks with nominal storage capacity of 4.80 Lacs KL of liquid & gaseous chemicals falling in “A”, “B” and “General” classes, including Petroleum & Cryogenic products.
Sr. no
Type of Storage tanks
Material of Construction
Storage Temp. (Deg. C)
No of tanks
Nominal Capacity in KL
Range
1
SPHERE
CS
Ambient
2
5140
-
2
DWST
LTCS
-45°
1
50000
-
3
DWST
LTCS
-4°
1
30000
-
4
SPHERE
CS
< 10°
2
4700
-
5
Floating Roof (Internal)
CS
Ambient
8
42806
1700-10600
6
Fix Roof
CS
Ambient
6
66706
4000 - 22078
7
Fix Roof
SS
Ambient
1
9021
-
8
Dome Roof
CS
< 15°
1
3300
3300
9
Floating Roof (External)
CS
Ambient
15
268204
2630-41802
Total
37
479877
4 nos. tanks used in LPG/Propane out of which two are double wall tanks with total capacity 80,000 KL and two are spheres of total capacity 5140 KL.

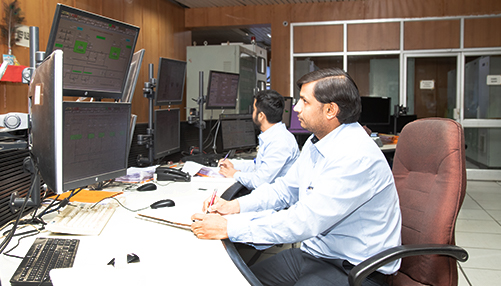

DCS based Tank Farm Management System provided to control plant operation
Utilities like Nitrogen, water, Cooling Tower, Compressed Air, Instrument air are available.
Flare stack for incineration of Hydrocarbon vapours.
Effluent treatment plant.
Stand by power supply (DG sets) of 2000 KVA.
LPG Blender with capacity of 150 MT/Hr.
LPG road tanker gantry with capacity of 3000 MT/ day.
